Connector Type VGA, HDMI
Brand Wiistar
Unit Count 1 Count
  • Input connector: 1 x SDI BNC; Output connector: 1 x VGA,1 x CVBS,1 x SDI
  • Supports all SDI resolutions: SD-SDI: 480i, 576i HD-SDI: 720p 24/25/30/50/60, 1080i all frame rates,all frame rates 3G-SDI: 1080p all frame rate
  • VGA output resolution: 800×600/60,1024×768/60,1280×720/60,1280×1024/60,1360×768/60,1680×1050/60,1920×1080/60; AV output resolution: NTSC and PAL
  • Automatically detects HDMI EDID information,supports all formats asymmetric conversion
  • Easy to Install and Operate; 1 Channel SDI Signal Loop Out,supports OSD menu operation

Product Description

Product Description

  • This SDI to VGA/CVBS converter can convert SDI (SDI-SDI/HD-SDI/3G-SDI) signal to VGA or AV signal,and it include a SDI input port and a SDI output port at the same time,support FULL-HD SDI signal input and output,it also very easy to be use with high stability and reliability.

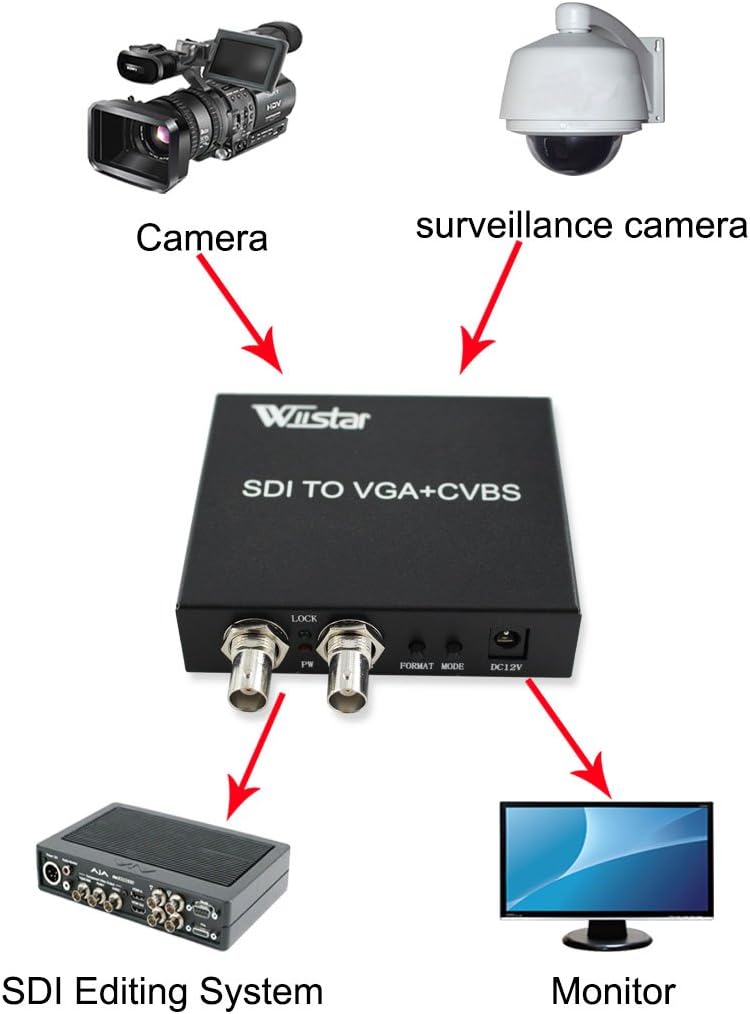

  • This converter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc.
  • This product is SDI to SDI+VGA+CVBS converter, cannot be used in reverse. And there is the remind/detail instruction of the step when using,the progress is a bit complex,so please read this introduction seriously at first before you use.
Convert SDI (SDI-SDI/HD-SDI/3G-SDI) signal to VGA or AV signal,and it include a SDI output

Specifications:

  • Input connector: 1 x SDI (SD-SDI/HD-SDI/3G-SDI)

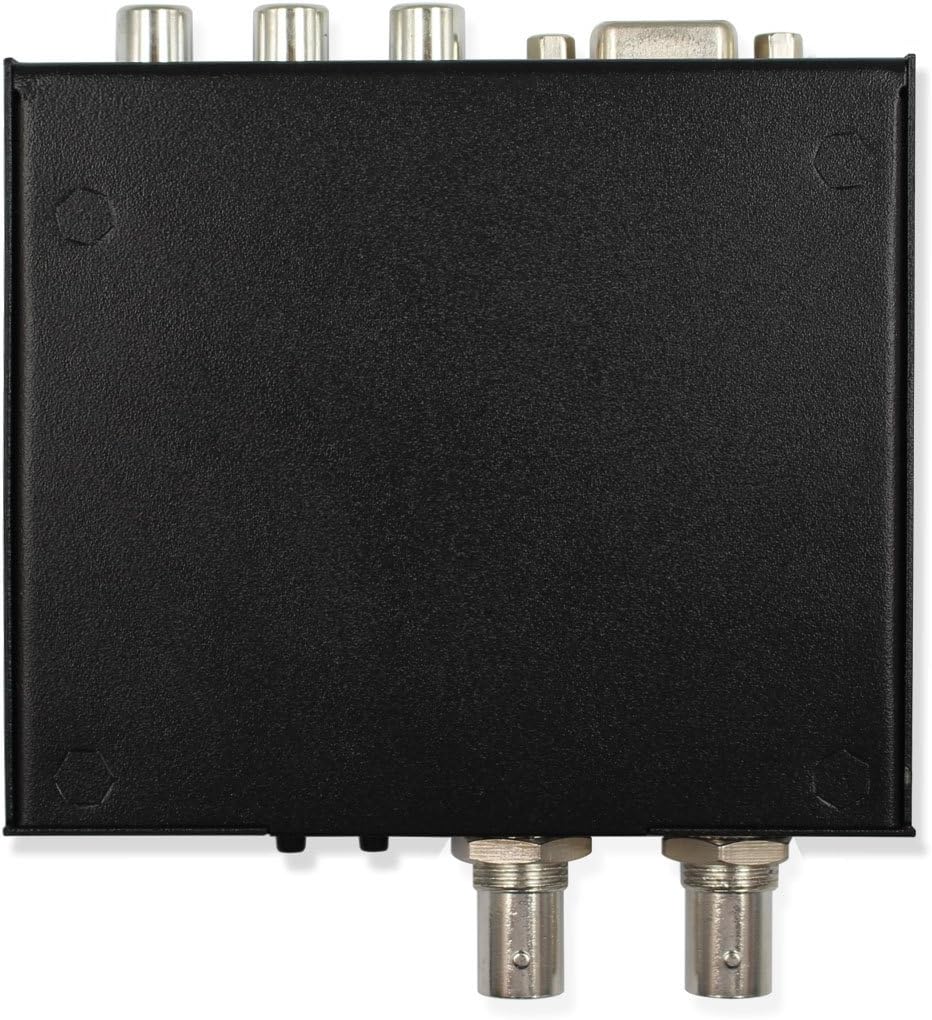

  • Output connector: 1 x VGA,1 x CVBS,1 x SDI

  • Support cable length(BELDEN 1694A)

3G mode: up to 330 ft.

HD mode: up to 660 ft.

SD mode: up to 1320 ft.

Convert SDI (SDI-SDI/HD-SDI/3G-SDI) signal to VGA or AV signal,and it include a SDI output

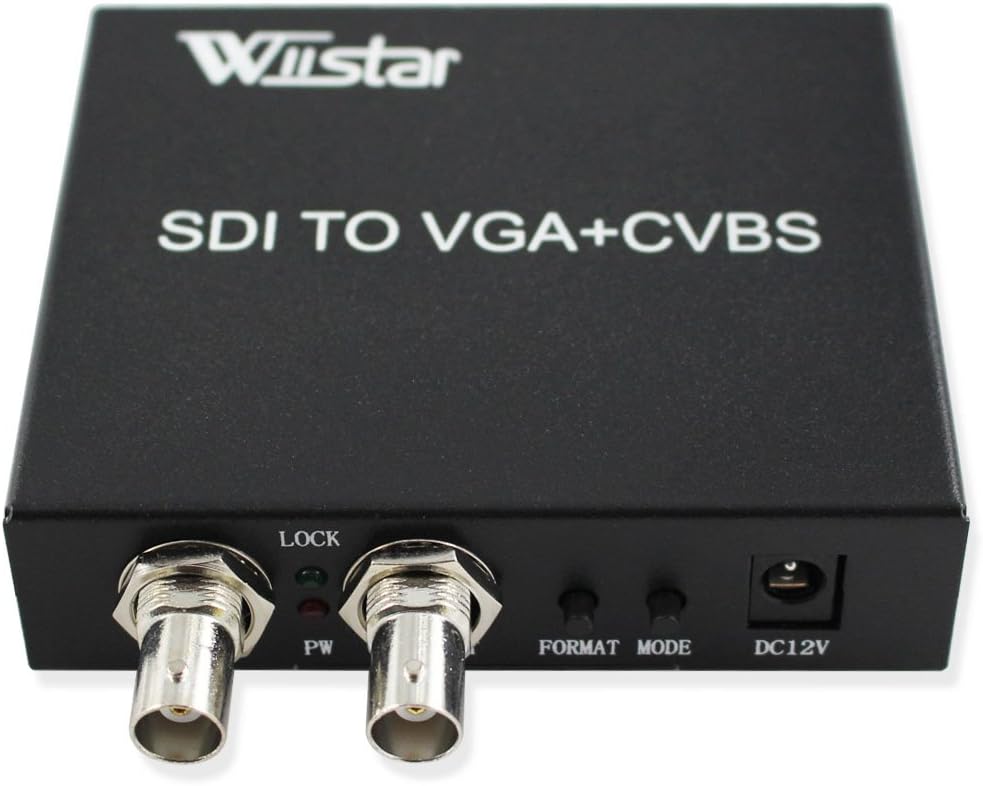

Note: Please read the detail operation function of the two keys on the product: MODE and FORMAY key.

  • 1. How to switch the output channel?

Press the MODE key.Then the output signal will be switched between VGA and CVBS channel.

  • 2. When the output signal is CVBS channel, then:

Press FORMAT key: the CVBS output will only can be switched between PAL and NTSC

  • 3. When the output signal is VGA signal, then:

Press FORMAT key: you will switch to these different resolution on your VGA device: 800*600p60, 1024*768p60, 1280*720p60, 1280*1024p60, 1360*768p60, 1680*1050p60, 1920*1080p60.

  • 4. Remind, there is a issue :

Usually we take standard by SAMSUNG monitor when we develop this product,sometimes there will appear some color bar on your other brand monitor,because different brand monitor have different progress,so the color bar will appear,but the image is complete.

Convert SDI (SDI-SDI/HD-SDI/3G-SDI) signal to VGA or AV signal,and it include a SDI output
